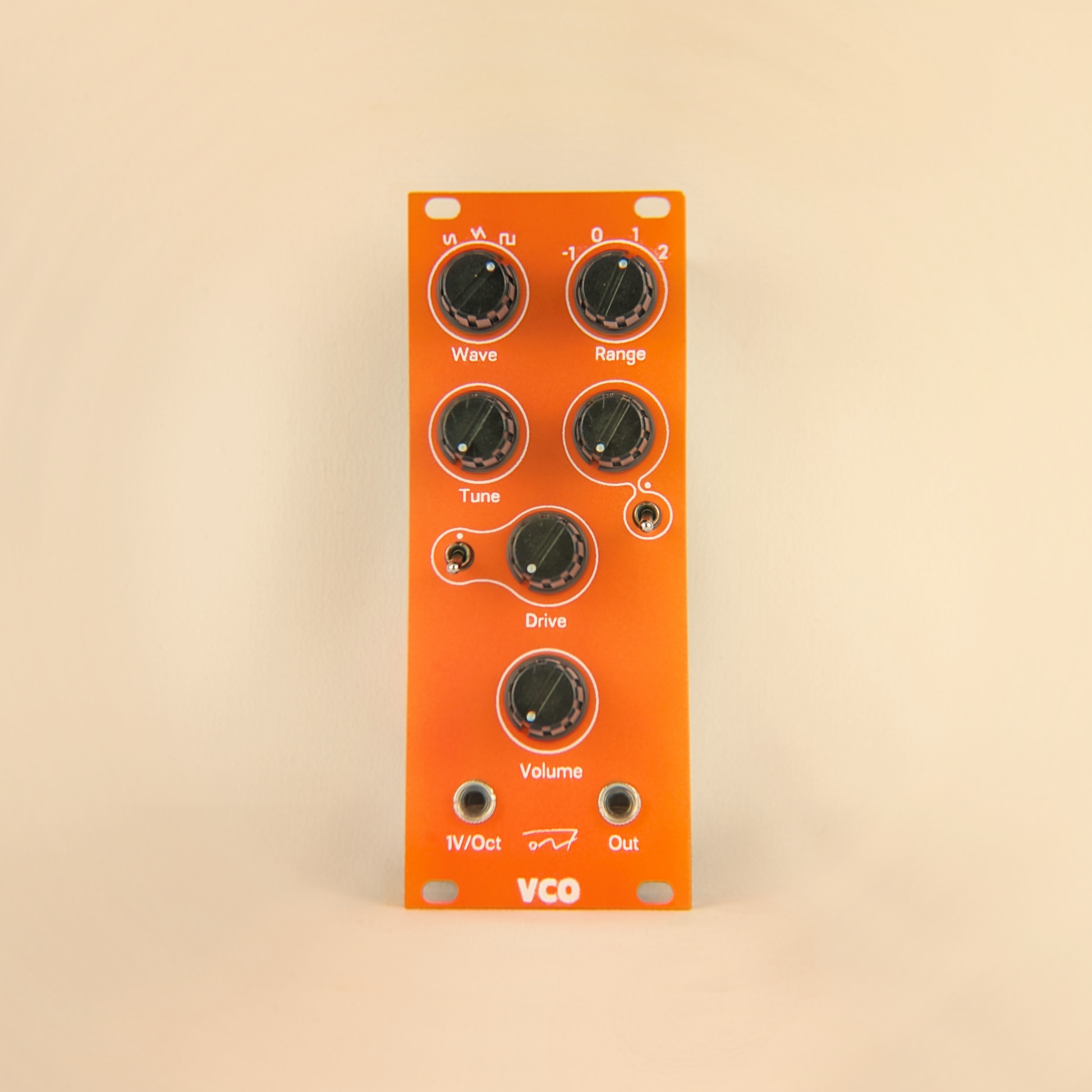

VCO

This is a VCO (Voltage Controlled Oscillator) module, built with carefully selected high-grade audio components and a circuit designed to deliver a unique, warm sound.
In addition to Waveform, Octave, Fine Tuning, CV, and Volume controls, it also includes a Drive control for organic distortion shaping, along with a unique "Bug" sound function.

Size :
Width: 10 HP (50.8 mm)
Depth: 57.5 mm (including front panel and knob)

CV (1V/Oct) :
Range : -5V ~ 5V

Power Consumption :
  5V : 10mA
 12V : 70mA
-12V : 15mA

※ duties / taxes
Import duties / taxes may apply and are the customer’s responsibility .
